Brake discs Yamaha YZ85 2002 - 2022 (Newfren)

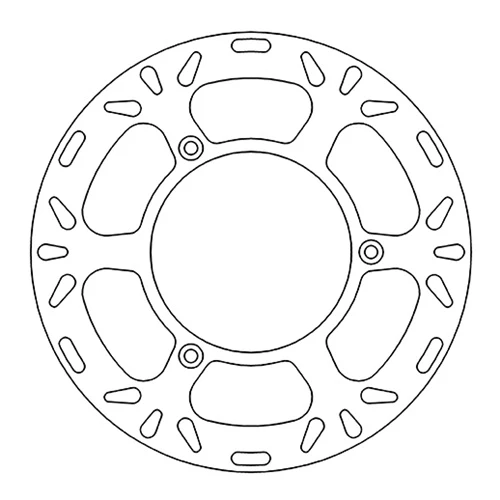

#DF5146A

Made of AISI 420 steel, heat-treated and then polished.

A protective coating, except on friction surface, guarantees that slots and other parts remain intact over time.

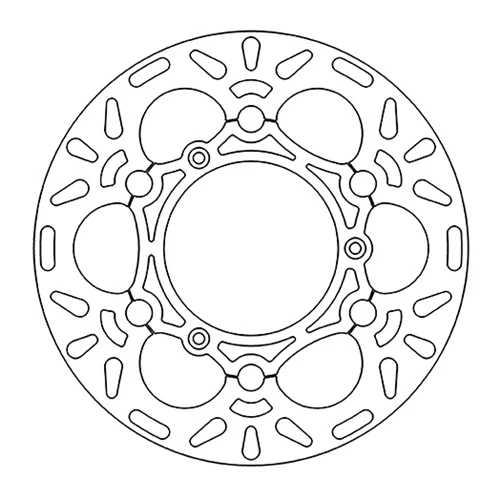

#DF5161AF

The floating brake disc offers high performances thanks to heat-treated material.
It offers the best result in combination with Newfren brake pads.
The peculiarity of the floating brake disc is the rotor (made of steel) which is unlinked from the central hub (it freely moves on ergal 7075 mounting buttons machined from solid, anodized and heat treated).
This system highly reduces the stress of the disc therefore the wear.
Moreover, it offers a better disposal of the heat, thanks to the easy brake rotor adjustment.
The optimized cooling, given by this system, avoids brake pads moving back inside the caliper, during long descents.

The hub is made by steel.

The disc has oversize external diameter equal to 250 mm.
For mounting it needs the Newfren caliper adaptor.

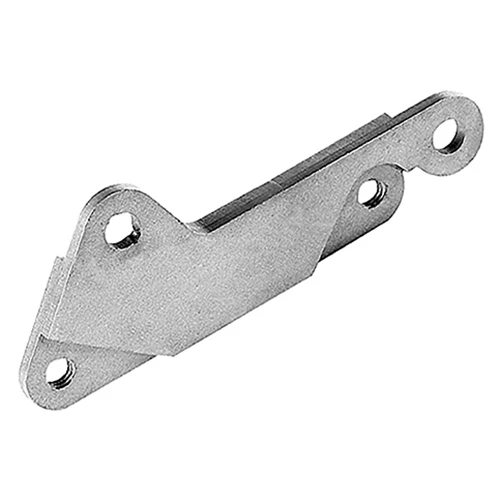

#DFST14

Made of ergal 7075 CNC machined and anodized.

To be used with Newfren oversized brake disc.

#DF5151A

Made of AISI 420 steel, heat-treated and then polished.

A protective coating, except on friction surface, guarantees that slots and other parts remain intact over time.
