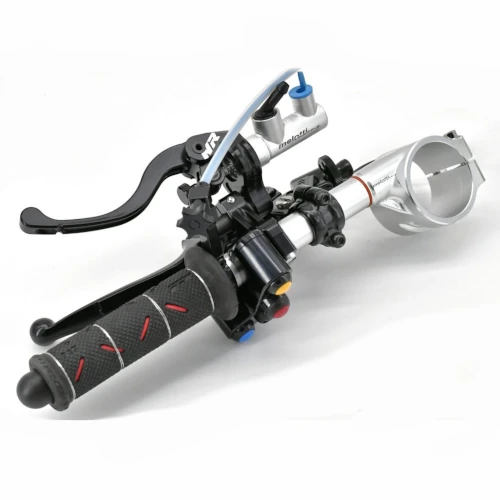

Index rear brake master cylinder for motorcycle | made by Melotti Racing Italy

#PFI13

This index rear brake master cylinder gives you five total degrees of freedom (translation + rotation) combined with the axial positioning of the brake master cylinder.
It ensures an optimal adjustment to use by the rider and the positioning of all handlebar controls.

As on the radial brake master cylinders, the lever position is adjusted with a single click knob.
This allows an easy adjustment even while driving.

Cylinder diameter 13 mm.

By removing a seeger ring you can disassemble the system for a rapid replacement following a fall.

The parts are made of CNC machined ergal and then treated with anodic oxidation.

This kit is for racing use only and FIM approved for the WorldSSP.

Using this kit, you cannot use the pedal rear brake master cylinder.
However, fitting the Mellotti Racing double way rear brake master cylinder, you can use this kit with the pedal rear brake master cylinder.

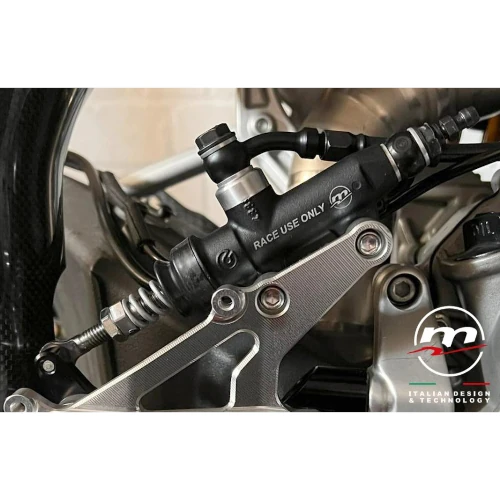

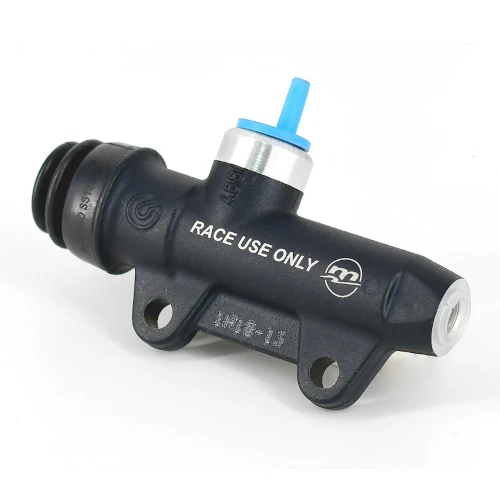

#PFDM13

#PFDM13

Designed on basis of the consolidated and efficient Brembo master cylinder.
The modification, according to the FIM regulations, allows the combined use of the index rear brake master cylinder on the handlebar in addition to the pedal rear brake master cylinder.

Cylinder bore diameter 13 mm.
Threaded holes for M10 x 1 mm fittings.
Distance between fixing holes 40 mm.

This brake master cylinder is for racing use only.

Developed with the Ducati Barni WSBK Team and the Ducati GoEleven WSBK Team.
